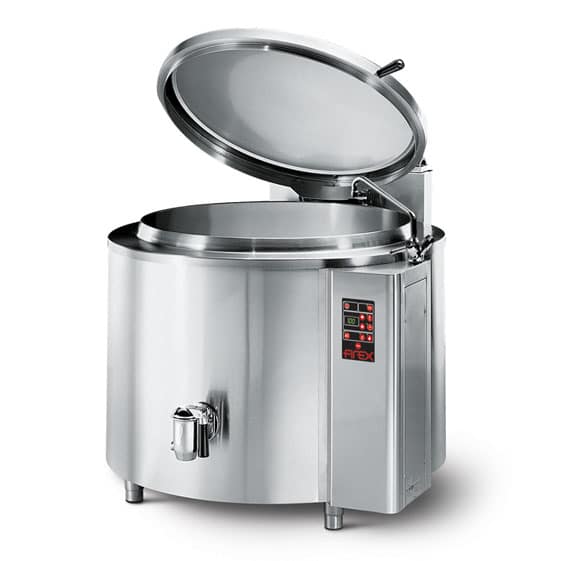

FIXPAN | Stationary Boiling Pans | Indirect Steam Heating
Brand: Firex
Series: Fixpan
Description:
FIXPAN series medium to large capacity stationary boiling pans with indirect steam heating. Stainless steel contruction, electronic control panel and capacities ranging from 100 to 500 litres, they are ideal for cooking large quantities of food in water. Optional upgrades include a pasteurisation kit featuring probes and water circulation system.
PF IV 100
100L, 40-50 kg/hr load capacity. Single phase power required.
1050 W x 850 D x 900 H
PF IV 100 Spec Sheet
PF IV 150
150L, 50-60 kg/hr load capacity. Single phase power required.
1050 W x 850 D x 900 H
PF IV 150 Spec Sheet
PF IV 200
220L, 60-80 kg/hr load capacity. Single phase power required.
1205 W x 1000 D x 900 H
PF IV 200 Spec Sheet
PF IV 300
325L, 80-100 kg/hr load capacity. Single phase power required.
1340 W x 1130 D x 900 H
PF IV 300 Spec Sheet
PF IV 500
480L, 100-120 kg/hr load capacity. Single phase power required.
1340 W x 1130 D x 1050 H
PF IV 500 Spec SheetManufactured in: italy
Warranty:
12 months parts
12 months labour
